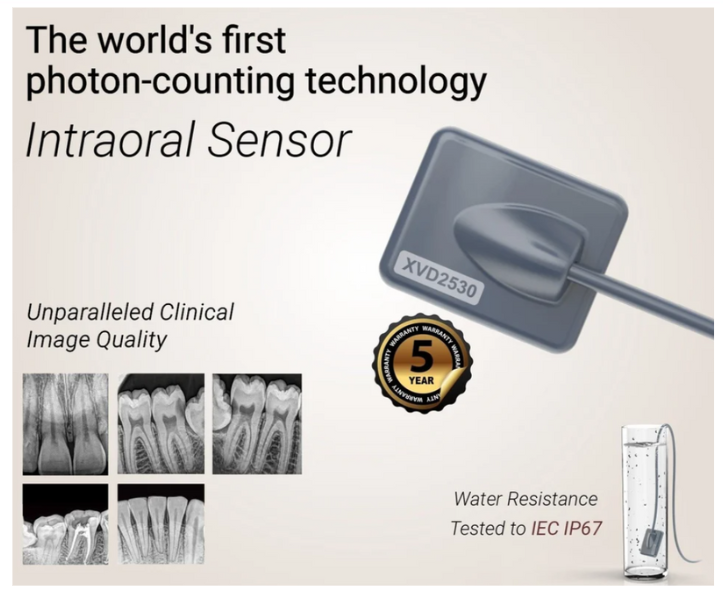

XPECT VISION Photon-Counting Intraoral X-Ray Imaging System Sensor Dental X-Ray Detector.
First-ever Photon-Counting Intraoral X-Ray Imaging System. It is a disruptive and affordable dental imaging system that enables exquisite imaging details in the DIGITAL era.
Feature:
Photon Counting Detector Technology
Photon counting detector technology is applied in intraoral imaging for the first time, converting X-rays into digital signals directly; and yielding high dynamic range, high contrast-resolution images at comparatively lower dosage.
Cost Effective
Our sensor/ detector is totally digital, without a need for film processing. Moreover, our photon-counting detector is manufactured with standard microelectronics fabrication process, thus enjoying sizeable cost advantage.
Extraordinary Usability
Compatible with the currently available imaging technology on the market, the XLinearVision™ can work with both film and digital radiography systems, fitting well into most practices of radiography imaging applications.
Profound Reliability
The sensor casing is purposely designed to resist shocks, bite, and drops to ensure product durability. It is absolutely waterproof, able to be immersed in disinfecting solution for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.
Optimal Workflow
USB connection to the computer supports lighting-fast data transmission and enables real-time imaging. User-friendly design also helps to optimize workflow.
Powerful Post-Processing Software
Multiple image post-processing algorithms help to improve image contrast and sharpness with more exquisite details. *Disposable protective sheaths are provided to protect the sensor.
Specification:
Detector Technology: Photon-counting
Effective Imaging Area: Size 1: 21*21mm Size 2: 25*30mm
Sensor Size: Size 1: 26.5*32 mm Size 2:30*37mm
